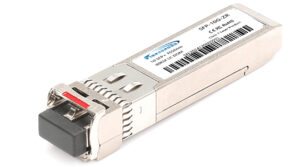

10G SFP+ZR 1550nm 80km Optical Transceiver
The 10G SFP+ZR 1550nm Transceiver is a high-performance optical module designed for long-distance data transmission. With a maximum speed of 11.3G, it supports both single-mode and multi-mode fibers, making it versatile for various applications. This transceiver can transmit data up to 80km, perfect for connecting remote locations or building robust data center networks.
If you’re looking to buy a 10G SFP+ZR transceiver online, Fibrecross offers competitive pricing and fast shipping.
Part Number | GL10-SM55ER40C/I | Tx Power (dBm) | -1~4 |
Product | SFP+ ER | Sensitivity (dbm) | ≤-15.8 |
Max Data Rate | 10.3Gbps | Distance | 80km |
Wavelength | 1550nm | Connector | Duplex LC |
Laser Type (TX/RX) | EML/PIN | Temp | 0~70 ℃/-40~85℃ |
- Applications
- Features
- 10Gbps Optical systems
- 10GBASE-ZR at 10.3125Gbps
- 10GBASE-ZW at 9.953Gbps
- LTE systems
- Supports up to 10.7Gbps bit rates for high-speed data transfer
- Hot-pluggable SFP+ footprint for easy installation and maintenance
- Up to 80km for SMF transmission ideal for metro and data center networks
- RoHS-compatible for environmentally friendly design
- Duplex LC connector compliant with SFP+ MSA SFF-8472
- Operating temperature: Commercial (0°C to +70°C) or Industrial (-40°C to +85°C)
FAQ About 10G SFP+ ZR Optical Transceiver
Our 10G SFP+ZR 1550nm optical transceiver reliably supports link lengths up to 80 km on standard ITU-G.652 single-mode fiber, making it ideal for long-haul metro and campus backbone deployments.
Our optics undergo rigorous multi-vendor compatibility testing. You’ll find the 10G SFP+ZR 1550nm transceiver fully interoperable and hot-pluggable on Cisco, Juniper, Arista, Huawei, and other leading 10 GbE platforms.
Use fiber optic cleaning kits with lint-free wipes and isopropyl alcohol. Always cap the transmitter and receiver ports when not in use. Perform scheduled end-face inspections with a fiber scope to ensure <0.1 dB insertion loss.
Yes, it is RoHS-compliant and meets Telcordia GR-468-CORE reliability requirements, ensuring low failure rates and environmental safety.
Our transceiver supports Digital Diagnostic Monitoring (DDM) via the SFF-8472 interface, allowing real-time monitoring of optical power, temperature, voltage, and bias current directly from your switch/router CLI.
Inspect and clean fiber end-faces and connectors.
Verify DDM readings for Tx/Rx power levels.
Check for excessive optical link loss (splices, bends).
Ensure correct polarity and duplex settings on your switch/router port.
Swap with a known-good SFP+ZR module to isolate faults.
