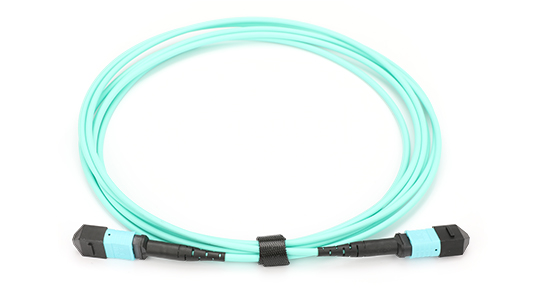

MPO / MTP Trunk Cable

MPO / MTP Trunk Cable

Description

MPO / MTP Trunk Cable, including MPO to MPO models and a hybrid of MPO to normal connectors, are part of the data center’s high-width structured cabling and can be supplied with spool wraps, cabling strain relief rings, MPO/MTP adapter module boxes and plug-in panels. High efficiency and performance for high density data center cabling connections.

Specification
Applications
Features

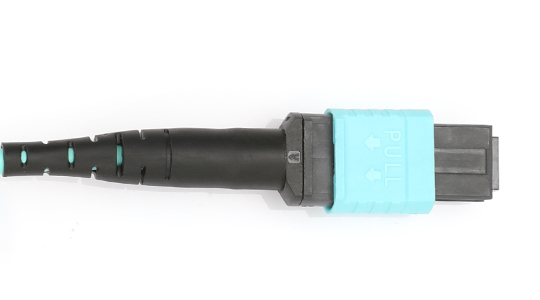

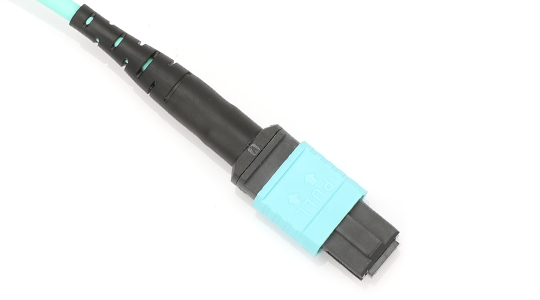

MPO / MTP Connector
Type	Single-mode (APC polish)		Single-mode (PC polish)		Multi-mode (PC polish)
Fiber count	8,12, 24 etc.		8,12, 24, etc.		8,12, 24, etc.
Fiber type	G652D,G657A1, etc.		G652D,G657A1, etc.		62.5/125,OM2,OM3,OM4, etc.
Maximum Insertion Loss	Elite / Low Loss	Standard	Elite / Low Loss	Standard	Elite / Low Loss	Standard
	≤0.35 dB	≤0.70 dB	≤0.35 dB	≤0.70 dB	≤0.35 dB	≤0.5 dB
	0.25 dB Typical	0.5 dB Typical	0.25 dB Typical	0.5 dB Typical	0.2 dB Typical	0.35 dB Typical
Return Loss	≥55 dB		≥45 dB		≥20 dB
Durability	≥200 times		≥200 times		≥200 times
Test Wavelength	1310nm / 1550nm		1310nm / 1550nm		850nm / 1300nm

Common Single-pole Connector
Type	Single-mode (APC polish)		Single-mode (UPC polish)		Multi-mode (UPC polish)
Fiber type	G652D,G657A1, etc.		G652D,G657A1, etc.		62.5/125,OM2,OM3,OM4, etc.
Maximum Insertion Loss	Low Loss	Standard	Low Loss	Standard	Low Loss	Standard
	≤0.1 dB	≤0.30 dB	≤0.1 dB	≤0.30 dB	≤0.1 dB	≤0.30 dB
	0.05 dB Typical	0.25 dB Typical	0.05 dB Typical	0.25 dB Typical	0.05 dB Typical	0.25 dB Typical
Return Loss	≥60 dB		≥50 dB		≥25 dB
Durability	≥500 times		≥500 times		≥500 times
Test Wavelength	1310nm / 1550nm		1310nm / 1550nm		850nm / 1300nm

Note: All MPO/MTP multi-core fiber optic patch cord assemblies are available in parallel (Type A), crossover (Type B), or paired crossover (Type C) polarity relationships.

Workstation-to-workstation pre-connected bridge wiring
High-density fiber optic line management.
Data Center
LAN/WAN Client

Pre-connected end bridge wiring between workstations
Optional 12~144 cores multi-core backbone cable structure, the number of fiber optic cables in 12 cores increments
Optional G652D / G657A1 / G657A2 single-mode fiber optic cables, multimode 62.5/125, 10G OM2 / OM3 / OM4, or bend-resistant high-performance 10G multimode fiber optic cables, etc.
Customized cabling protection configurations with spools and cable ties
RoHS compliant, Telcordia GR-1435-CORE, GR-326-CORE
