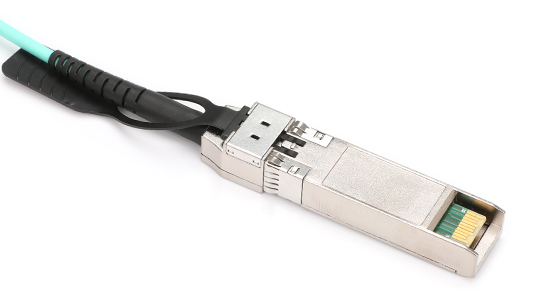

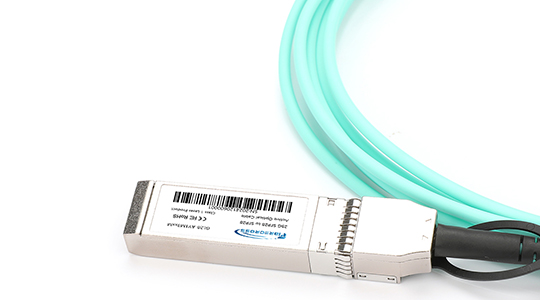

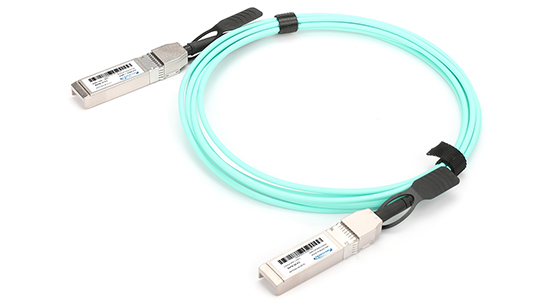

25G SFP28 Active Optical Cable (AOC)
The 25G SFP28 Active Optical Cable (AOC) delivers high-performance, low-latency data transmission up to 100 meters over OM3/OM4 multimode fiber. Designed for top-of-rack and server-to-switch applications, our 25G AOC cable is ideal for hyperscale data centers, enterprise networking, and high-performance computing environments.And it complies with SFF-8432 SFP28 MSA standards
| Part Number | Product | Data Rate | Wavelength | Length | Operating Temp |
|---|---|---|---|---|---|
| GL28-AY1M301M | 25G SFP28 AOC Cable, 1m | 25.78 Gbps | 850 nm | 1 meter | 0°C to 70°C |
| GL28-AY1M303M | 25G SFP28 AOC Cable, 3m | 25.78 Gbps | 850 nm | 3 meters | 0°C to 70°C |
| GL28-AY1M305M | 25G SFP28 AOC Cable, 5m | 25.78 Gbps | 850 nm | 5 meters | 0°C to 70°C |
| GL28-AY1M310M | 25G SFP28 AOC Cable, 10m | 25.78 Gbps | 850 nm | 10 meters | 0°C to 70°C |
| GL28-AY1M320M | 25G SFP28 AOC Cable, 20m | 25.78 Gbps | 850 nm | 20 meters | 0°C to 70°C |
| GL28-AY1M330M | 25G SFP28 AOC Cable, 30m | 25.78 Gbps | 850 nm | 30 meters | 0°C to 70°C |
| GL28-AY1M350M | 25G SFP28 AOC Cable, 50m | 25.78 Gbps | 850 nm | 50 meters | 0°C to 70°C |
| GL28-AY1M3100M | 25G SFP28 AOC Cable, 100m | 25.78 Gbps | 850 nm | 100 meters | 0°C to 70°C |
- Rack-to-Rack Interconnect
- Server-to-Switch Links
- High-Performance Computing (HPC)
- Hot-pluggable SFP+ cable ends
- Support 25.78Gbps bit rate
- Available in lengths up to 100m
- Power Dissipation <1W
- Single +3.3V power supply
- Operating Case temperature range:0°C to 70°C
- RoHS-6 compliant
- Compliant with SFF-8431
- Compliant with SFF-8432
Why Choose Our 25G AOC cable?
High-Speed 25 Gbps Throughput
Support for up to 25.78 Gbps per channel ensures rapid data movement between networking devices, helping you meet the demands of today’s cloud-scale workloads.
Up to 100 m OM4 Reach
The 25G SFP28 AOC cables offers seamless optical interconnect over OM4 multimode fiber up to 100 meters, ideal for short-distance, high-density deployments.
Low Power & EMI Immunity
With less than 0.8 W power consumption per end and superior EMI resistance compared to copper DAC, this cable helps optimize energy use and signal stability.
Hot-Pluggable Design
SFP28 form factor allows for quick, tool-free installation and replacement, reducing maintenance time and improving uptime.
FAQ About 25G SFP28 AOC Cables
The Fibrecross 25G AOC cable supports transmission up to 100 meters over OM4 multimode fiber and 70 meters over OM3 fiber. It is the preferred choice for short-reach 25G connectivity in high-density environments like top-of-rack (ToR) deployments.
While both solutions support 25Gbps data rates, 25G AOC cables provide longer transmission distances, greater EMI immunity, and lower crosstalk than 25G DAC cables. AOCs are ideal for medium-reach connections where performance and stability are critical.
Yes, Fibrecross 25G SFP28 AOCs are compatible with major brands including Cisco, Arista, Juniper, and others, ensuring plug-and-play interoperability in multi-vendor data center networks. Compatibility testing can be requested upon order.
Absolutely. The 25G SFP28 AOC cable is ideal for HPC and AI workloads that demand low-latency, high-throughput links between GPU servers or compute nodes. Its low power consumption and high EMI resistance make it a reliable choice.
Fibrecross 25G AOC cables comply with industry standards including SFF-8432 and IEEE 802.3by, ensuring electrical and optical performance consistency in professional network infrastructures.
