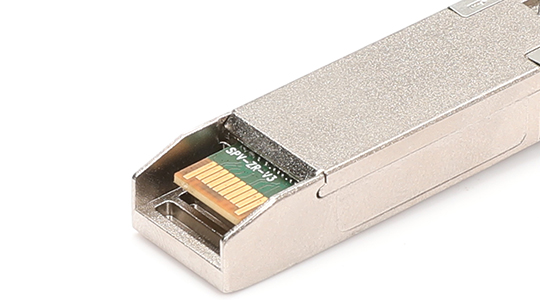

10G SFP+LC CWDM Transceiver Module
SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km/40km/80km transmission distance with SMF. The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
| Part Number | Product | Max Data Rate | Wavelength | Laser Type (TX/RX) | Tx Power (dBm) | Sensitivity (dbm) | Distance | Connector | Temp |
| GL10-CWxxLR10C | 10G SFP+ CWDM 10km | 10.3Gbps | 1271~1611nm | DFB/PIN DFB/APD | -3~5 | ≤-14.4 ≤-20 | 10km | Duplex LC | 0~70 ℃/-10~85°C |
| GL10-CWxxER40C/I | 10G SFP+ CWDM 40km | 10.3Gbps | 1471~1611nm | DFB/PIN | 0~3 | ≤-15.8 | 40km | Duplex LC | 0~70 ℃/-10~85°C |
| GL10-CWxxZR80C/I | 10G SFP+ CWDM 80km | 10.3Gbps | 1471~1611nm | EML/APD | 0~5 | ≤-24 | 80km | Duplex LC | 0~70 ℃/-10~85°C |
- 10Gbps CWDM Optical systems
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- LTE systems
- Supports up to 10.7Gbps bit rates
- Hot-pluggable SFP+ footprint
- Up to 10km for SMF
- CWDM DFB laser and PIN photodiode,
- Compliant with SFP+ MSA and SFF-8472
- Single +3.3V power supply
- Real Time Digital Diagnostic Monitoring
- RoHS compliant
- Operating case temperature:Standard: -5 to +70°C/Industrial: -40 to +85°C
FAQ About 10G SFP+ CWDM
We have 2 factories, one in Zhejiang with an area of over 5000 square meters, and one in Shenzhen, which is also our R&D center.
We can accept small quantity,even 1pc. MOQ:1pc
Bank transfer,T/T,PayPal,and ect.,we can talk about it.
Yes,please send inquiry to us so that we can have a detailed discussion.
For usual products ,we keep stock,could ship 1-3 days after receiving your advance payment.For big quanity and special
products,please contact us.
Yes,we have professional engineers to test all devices before shipping.Our product inspection also conforms to FCC/CE/RoHS
