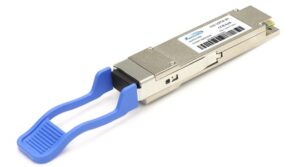

100GBASE-LR4 QSFP28 1310nm 10km Optical Transceiver Module
The 100GBASE-LR4 QSFP28 Optical Transceiver is designed for 10km transmission over single-mode fiber (SMF) using 1310nm wavelength and LC duplex connectors. Fully compliant with IEEE 802.3ba 100GBASE-LR4 standards, this module provides high-performance, low-latency 100G Ethernet connectivity for data centers, enterprise backbones, and metro access networks.
Whether you’re upgrading your infrastructure or deploying new high-speed links, this QSFP28 100G LR4 1310nm transceiver offers consistent reliability and interoperability with major OEM platforms.
| Part Number | GL1H-Q2SM31LR4C | Tx Power (dBm) | -3~4.5 |
| Product | 100G QSFP28 LR4 | Rx Power (dBm) | ≤-10.6 |
| Max Data Rate | 103Gbps | Distance | 10km |
| Wavelength | 1310nm | Connector | Duplex LC/UPC |
| Laser Type (TX/RX) | EML/PIN | Temp | 0~70 ℃ |
Data Center Interconnect (DCI) for high-capacity, long-distance links
Enterprise core network upgrades from 40G to 100G
Metro Ethernet and telecom access layer
Cloud computing infrastructure demanding reliable 100G performance
Long-haul aggregation over single-mode fiber
Fully compliant with 100GBASE-LR4 IEEE 802.3ba
1310nm CWDM wavelength for stable long-range transmission
Ideal for 10km SMF links in modern networks
Low power consumption < 3.5W
Interoperable with Cisco, Juniper, Arista, and more
Built-in digital diagnostics (DDM)
FAQ About 100G QSFP28 LR4 Optical Transceiver
It is a high-speed 100Gbps optical module compliant with IEEE 802.3ba, using 4 CWDM channels over 1310nm wavelength for 10km SMF transmission.
Yes, the QSFP28 100G LR4 optical module is ideal for long-range ToR, spine-leaf, and DCI links in modern data center architectures.
Absolutely. Our transceivers are Cisco compatible 100GBASE-LR4 QSFP28 modules, tested for seamless integration.
This module uses LC duplex connectors and requires single-mode fiber (SMF) for optimal performance over 10km.
Yes, you can buy 100GBASE-LR4 QSFP28 transceivers online from Fibrecross with full warranty, datasheets, and global shipping.
Yes,we have professional engineers to test all devices before shipping.Our product inspection also conforms to FCC/CE/RoHS
